Learn the features of NUCLEO-F303RE STM32 Development Board to program using Arudino IDE

NUCLEO-F303RE STM32 Development Board is a versatile development platform designed to simplify prototyping and testing of embedded systems using the STM32F303RET6 microcontroller. This board is a preferred choice for engineers and hobbyists exploring the capabilities of STM32 Nucleo Development Boards (supports Arduino). Its integrated ST-LINK/V2-1 debugger/programmer eliminates the need for additional debugging tools, making it convenient for both beginners and advanced developers.

The board’s Arduino compatibility allows seamless integration with a wide range of shields and modules. Additionally, ST Morpho headers provide access to the complete STM32 pinout, enabling advanced hardware configurations.

Microcontroller Features of the NUCLEO-F303RE STM32 Development Board

At the core of the NUCLEO-F303RE STM32 development board is the STM32F303RET6 microcontroller. This powerful microcontroller offers robust features tailored for complex applications:

• CPU: ARM® 32-bit Cortex®-M4 processor operating at up to 72 MHz.
• Memory: 512 KB Flash memory and 80 KB SRAM.
• GPIO: 51 General Purpose Input/Output pins with external interrupt capability.
• Analog Interfaces: Four 12-bit ADCs and two 12-bit DACs.
• Communication Interfaces:
  • I2C (3)
  • USART (5)
  • SPI (4)
  • USB 2.0 full-speed
  • CAN bus
• Timers: Ten versatile timers for applications ranging from PWM to advanced motor control.
• Power Supply: Supports 2.0 V to 3.6 V operating voltage.

These features make the board an excellent choice for implementing STM32 Arduino core applications..

Unique Features of the NUCLEO-F303RE

The NUCLEO-F303RE STM32 board includes features designed for enhanced usability and flexibility:

1. Extension Resources:
   • Arduino™ Uno Revision 3 headers for compatibility with various Arduino shields.
   • ST Morpho headers for direct access to STM32 I/Os.
2. On-Board Debugging: Integrated ST-LINK/V2-1 debugger eliminates the need for an external programmer. The SWD connector enhances debugging efficiency.
3. Power Supply Options:
   • Powered via USB VBUS or an external source (3.3 V, 5 V, or 7–12 V).
4. Additional Components:
   • User LED (LD2) for status indication.
   • Push buttons: USER for custom applications and RESET for system reset.
   • USB re-enumeration supporting three USB interfaces (Virtual COM port, Mass Storage for drag-and-drop programming, and Debug port).

NUCLEO-F303RE STM32 Development Board Pinout for STM32 Arduino Examples

A key aspect of using the NUCLEO-F303RE board is understanding its pinout:

• Arduino-Compatible Headers: These headers ensure compatibility with Arduino IDE and allow integration with STM32 Arduino library.
• Morpho Headers: Provide full access to all STM32 pins for advanced custom setups.

The NUCLEO-F303RE STM32 development board offers unique features and enhanced usability. With the ST Morpho headers and the STM32 pinout access, advanced hardware configurations can be easily achieved. Featuring the powerful STM32F303RET6 microcontroller, this board is well-suited for implementing STM32 Arduino core applications. Understanding its pinout is crucial for developers to effortlessly create STM32 Arduino PlatformIO projects or configure shields for extended functionality.

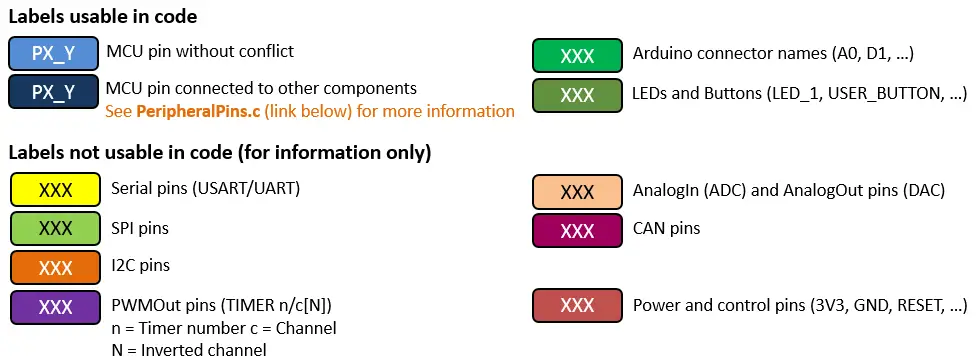

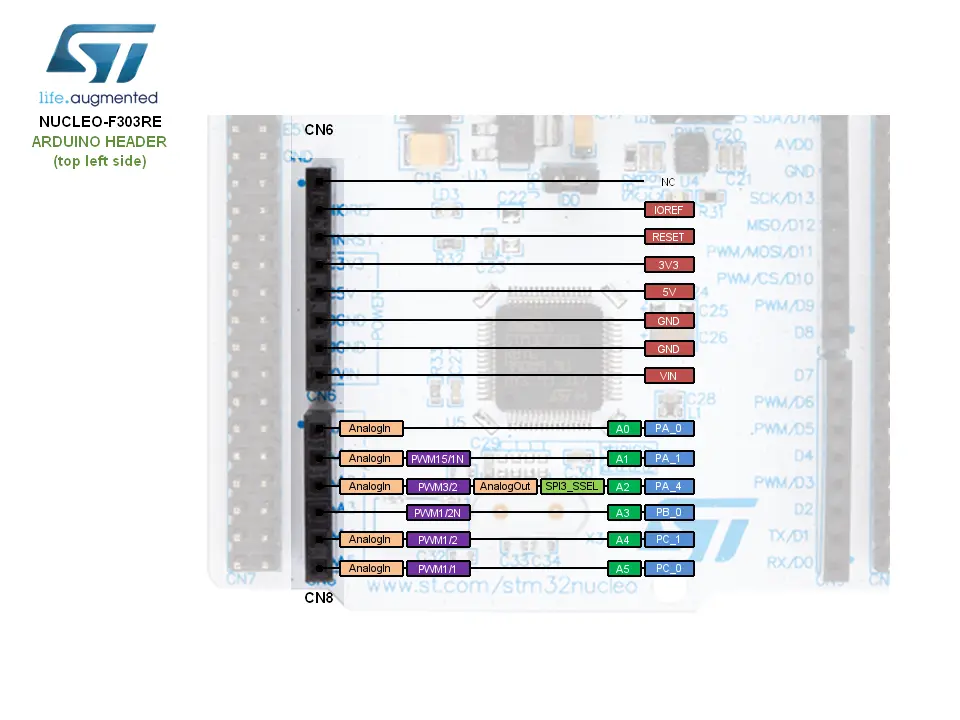

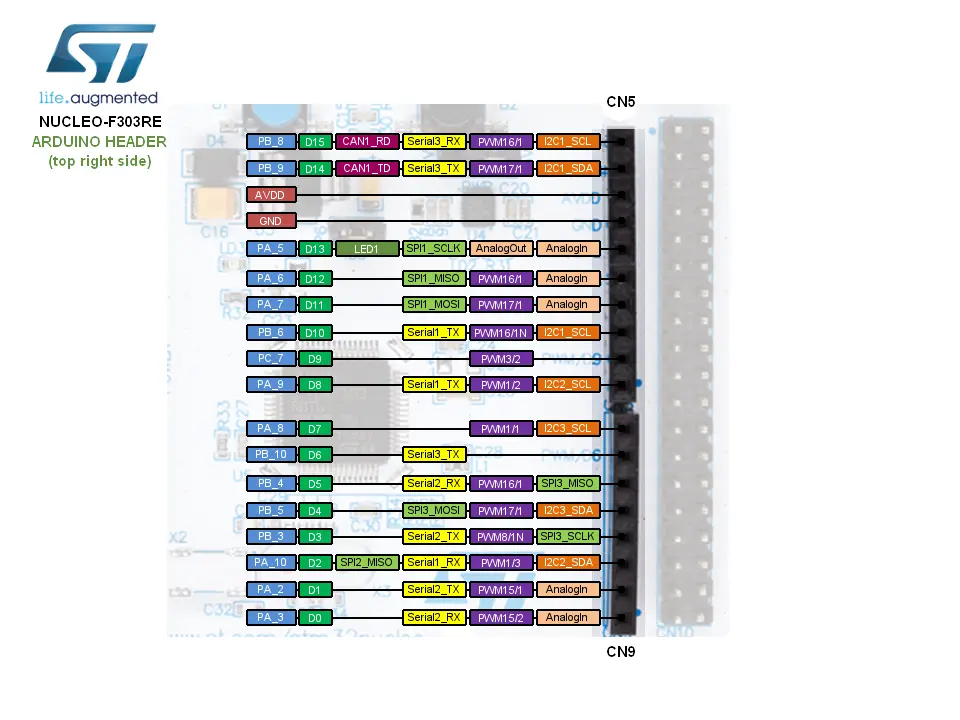

Arduino-compatible headers for NUCLEO-F303RE STM32 Development Board

Are you using a Arduino IDE ? Read this guide How to configure Arduino IDE to program NUCLEO-F303RE STM32 Development Board

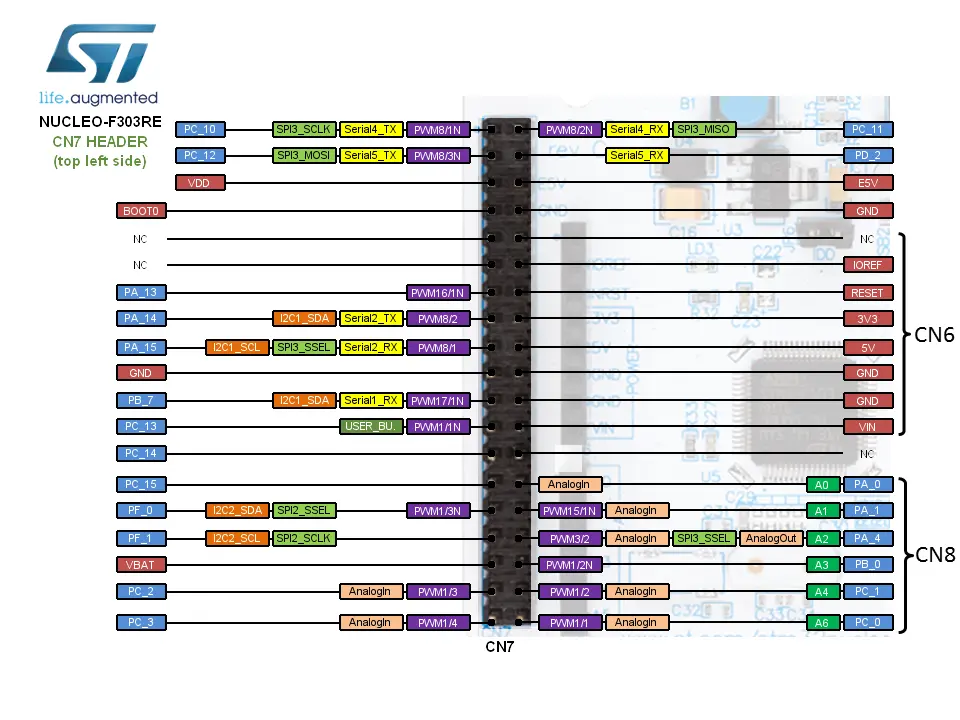

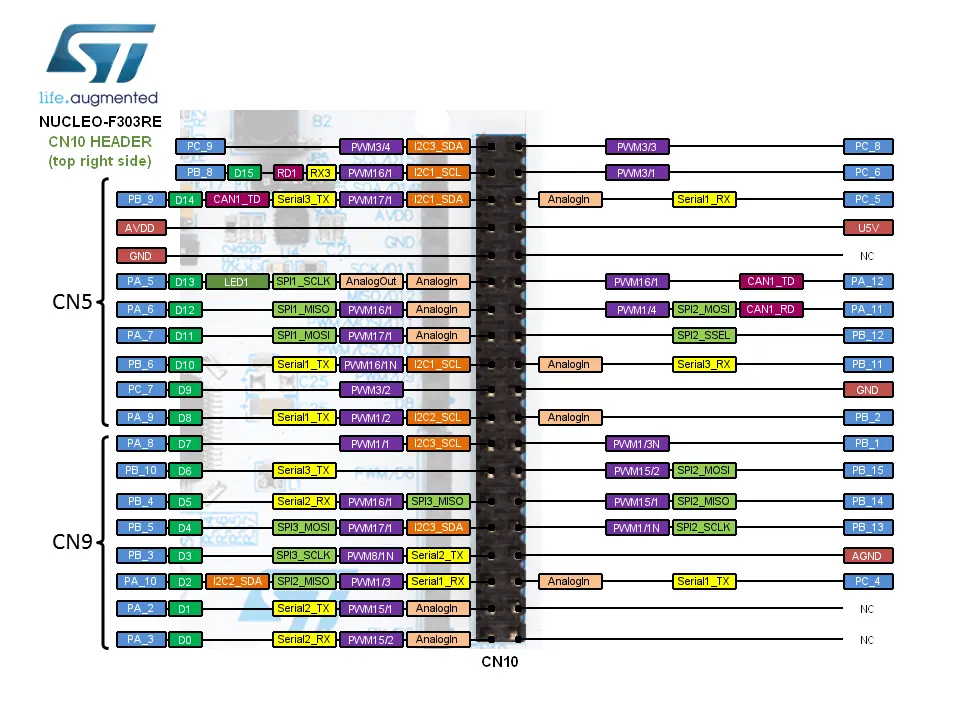

Morpho headers of NUCLEO-F303RE STM32 Development Board

Supported Shields for the NUCLEO-F303RE

The board supports a variety of shields to expand its capabilities:

• ST X-NUCLEO Boards: These specialized shields add features like sensing or communication modules.
• Third-Party Shields: The board’s Arduino compatibility ensures support for third-party shields following the Arduino standard.

Getting Started with STM32 Nucleo Development Boards

Step 1: Driver Installation and Firmware Update

Install the required ST-LINK/V2 drivers and upgrade the firmware for compatibility with the latest IDEs.

Step 2: Configure Development Environment

Choose an IDE like ARM mbed, Keil, IAR Embedded Workbench, or the Arduino IDE. If using the Arduino IDE:

• Add the STM32 Arduino board manager URL.
• Install the STM32 Arduino core via the Board Manager.

Step 3: First Program

To explore STM32duino examples, write a simple program (e.g., blinking the LD2 LED):

1. Compile the program in your IDE.
2. Upload the code using USB drag-and-drop functionality.

The NUCLEO-F303RE STM32 development board is a feature-rich platform ideal for prototyping embedded systems. Its Arduino IDE compatibility and flexible extension options make it suitable for beginners and experienced developers alike. Whether you’re building advanced applications using the STM32 Arduino PlatformIO or experimenting with STM32 Arduino examples, this board delivers exceptional performance and versatility.
